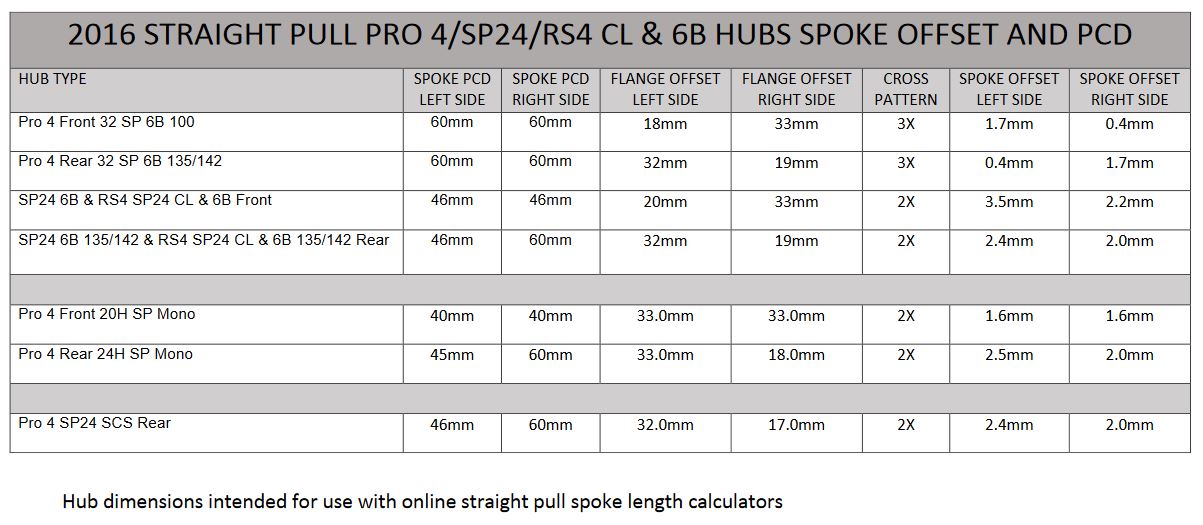

Hope RS4 135mm Rear hub Dimensions

Hub Type
Rear Hub
Axle Type
Thru Axle with Adaptors
Gear Type
Shimano, Campag Or SRAM XD
Brake Type
6-Bolt Disc
Is This A Dynamo Hub
No
Spoke Type
Straight Pull
Spoke Totals
24h
Overall Lock Nut Width
135mm
Left & Right Flange Diameter
46mm & 60mm
Left & Right Flange Offset
35.5mm & 48.5mm
Spoke Hole Diameter
2.6mm
Hub Weight
257g
User Note
This is a straight pull spoke hub. It's also availalbe with 142mm width axle. However the flange spacing is the same between the two widths.
