Shimano
XTR HB-M9110-BS (Straight Pull Spokes) with 110 x 15 axle

Hub Type
Front Hub
Axle Type
110 x 15
Gear Type
None (Front Hub)
Brake Type
Center Lock Disc
Is This A Dynamo Hub
No
Spoke Type
Straight Pull
Spoke Totals
28h
Overall Lock Nut Width
110mm
Left & Right Flange Diameter
45mm & 45mm
Left & Right Flange Offset
28.75mm & 21.49mm
Spoke Hole Diameter
2.6mm
Hub Weight
146g
Users Note
Shimano say: For straight spoke ERD: 550 – 610 mm Rim offset: 0 – 3 mm Intersections: 3 cross only including spoke heads in hub shell. Some spoke calculators may call this 2 cross. Contact the nearest SHIMANO sales office for more information.

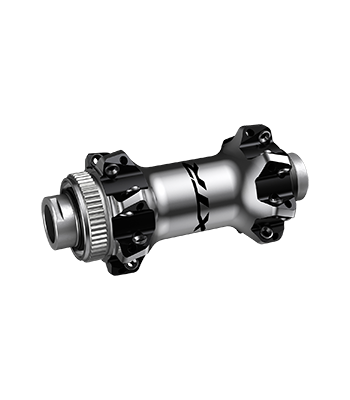

Image of a Shimano XTR HB-M9110-BS (Straight Pull Spokes) hub.
❮
❯
